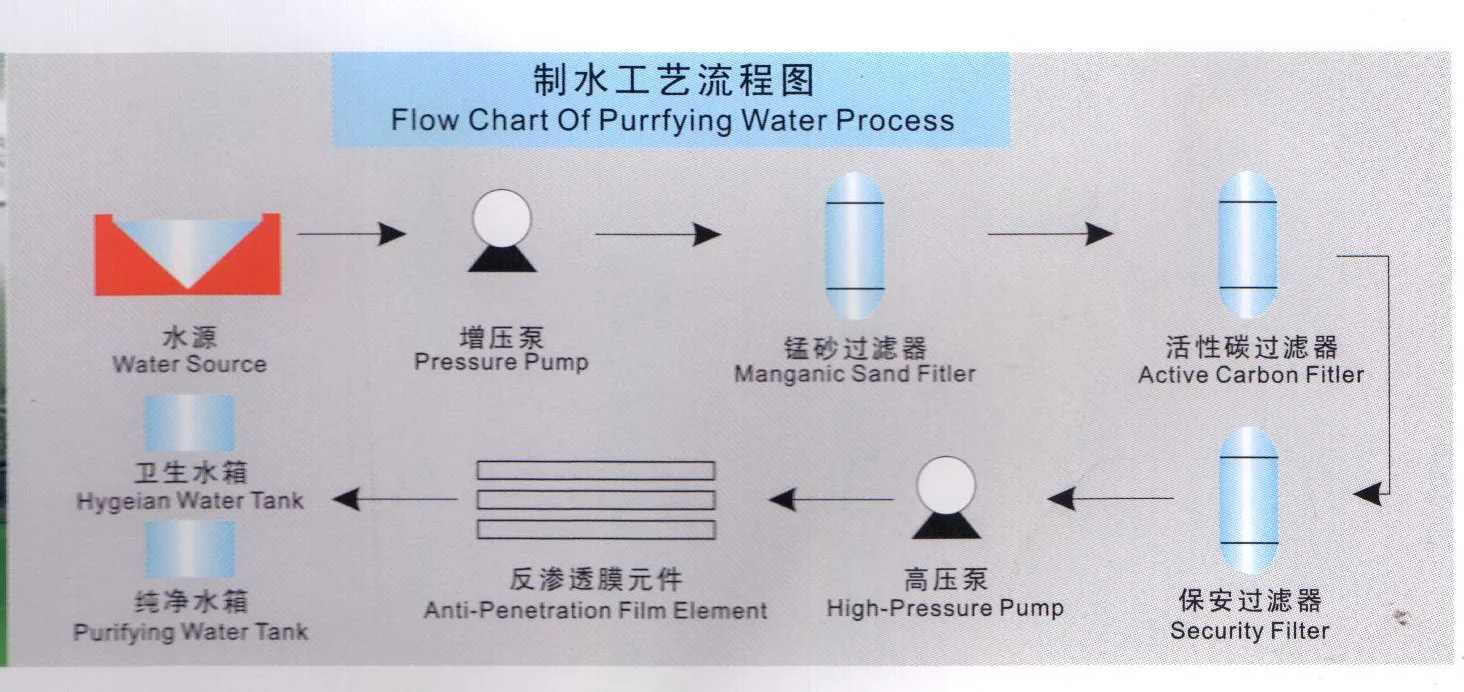

Flow Chart of Purifying Water Process:



 Feature:

1、 Imported parts over 90%

2、 High operation automatization; Machine does not need to be guarded by worker,it will stop automatically when water is full and start when there is no water inside .Automatic controller washes front transitive material timely,IC microcomputer controller washes anti-penetration film automatically,raw material and pure water electrical conductivity is shown on line.

3、 American RO low pressure film.

4、 Producing pure water electrical conductivity≤10us/cm.

5、Anti-penetration desalinating rate≥99% ,whole machine desalinatiing rate≥98%.



Parameter:

Type	Water producing quantity T/H	Electric power	Reclaim rate%	Outlet electrical conductivity US/CM	Film quantity	Raw water electrical conductivity US/CM
FRO-0.5T	0.5	0.75	50	3-8	2	≤300
FRO-0.75T	0.75	2.2	50	3-8	3	≤300
FRO-1T	1	2.2	75	3-8	4	≤300
FRO-2T	2.0	3.0	75	3-8	8	≤300
FRO-2.5T	2.5	3.0	75	3-8	10	≤300



Structure:

1.Source water pump

  Type: BLC120/150

  Power:0.75 KW

  Quantity: 1set

  Origin: Guangdong

2.Multi-medium filter

      Type:WCB-1465

      Material: Imported stainless steel

      Material of filter: Quartz sand

      Equipment: Automatic back flush valve

3.Activated carbon filter

       Type:WCB-1465

       Material:Imported stainless steel

       Material of filter: Quartz sand

       Equipment: Automatic back flush valve

4. Precision filter

       Material: stainless steel

       Size:D220×H550

      Filter: PP 5Nos. (3-5ц)

      Quantity:1set

5.Anti-penetration equipment

Type:RO-1000L

      Equipment: Imported assembly

      Quantity:1set

      Equipment: (1)Its main body adopt American“DOW” low pressure compound film 8 Nos. with 1 meter stainless shell.

                (2) Its adopt “TIANHAO” SMP2-150 vertical stainless steel high pressure pump.

               （3）All framework and tube adopt stainless steel

               （4）Metering display cabinet (digital conductivity Meter 2Nos. water flow meter 2set ,pressure gauge 2set ,PLC 1set ,pump switch 3Nos)

               （5）IC microcomputer automatic control.

A. IC microcomputer washes when it start ,it washes automatically per 2 hours for 60 seconds.

                 B. With high&low pressure protection

                 C. With high pressure or liquid level control

                 D. With source water pump control

                 E. With electromagnetic valve control

                 F. With high pressure pump control
