XY-B-2L Laboratory Vacuum Emulsifier
Feature
XY-B vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump, hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.
Feature
XY-B vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump, hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.
Product Introduction
Main Technical Parameters：
Use power: AC 220 V 50 Hz
Input power: 510 W
Output power: 300 W
Speed range: 11000～30000 r/min （ IMPORTED MOTOR ）
Mixing work diameter: Φ70 mm
work method : Interrupted (continue working )
Work of stator configuration. Head: 5 mm2，20 mm2，50 mm2
Maximum capacity: 2 L
Dimension: 360×280×730 mm
Vacuum pressure meter and perfume inlet ,clamps
Lifting system and the temperature indicate

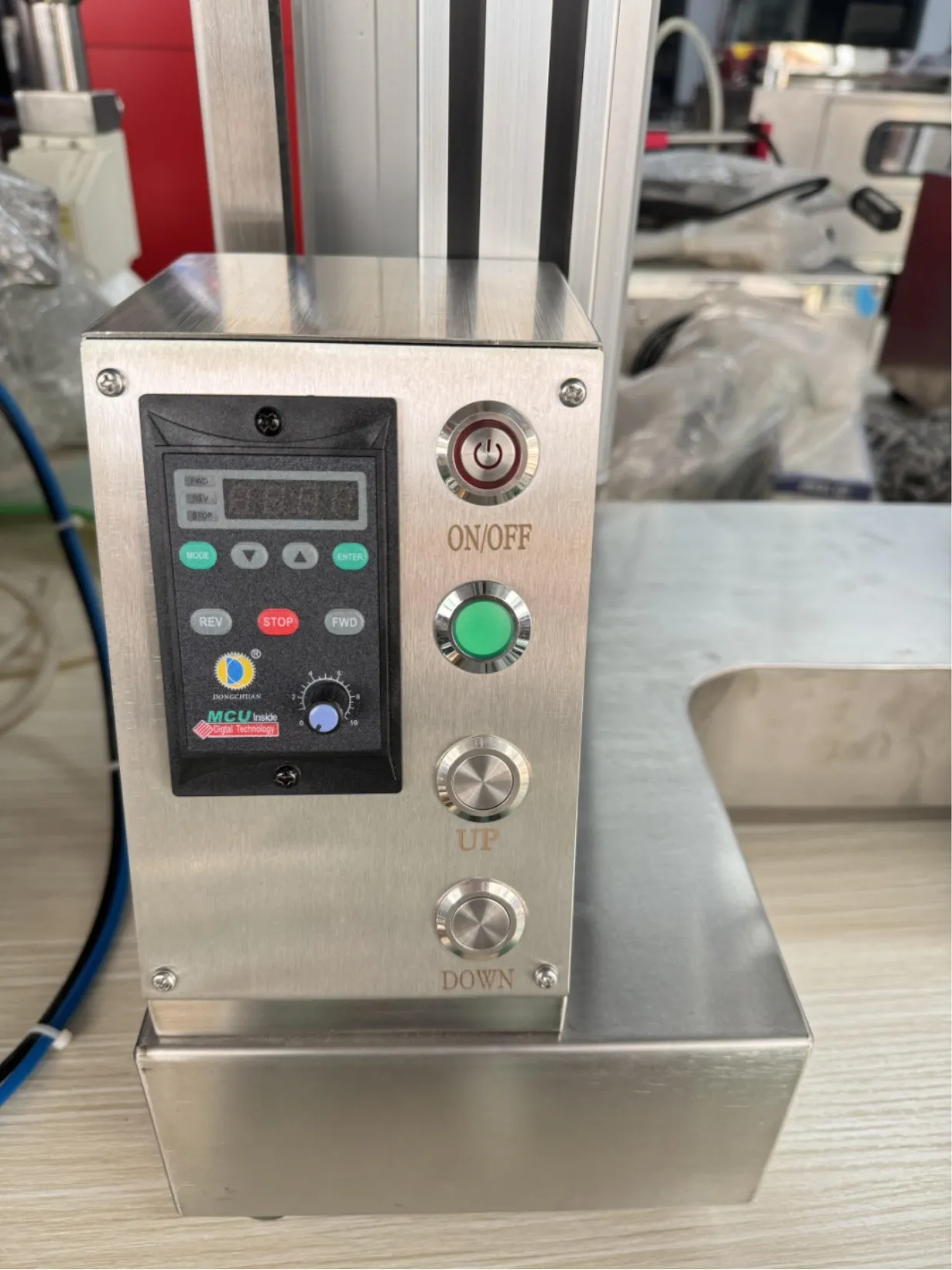

Stirring speed controller.
Main Technical Parameters：
Use power: AC 220 V 50 Hz
Input power: 510 W
Output power: 300 W
Speed range: 11000～30000 r/min （ IMPORTED MOTOR ）
Mixing work diameter: Φ70 mm
work method : Interrupted (continue working )
Work of stator configuration. Head: 5 mm2，20 mm2，50 mm2
Maximum capacity: 2 L
Dimension: 360×280×730 mm
Vacuum pressure meter and perfume inlet ,clamps
Lifting system and the temperature indicate
Stirring speed controller.
Production Process
Production Process
