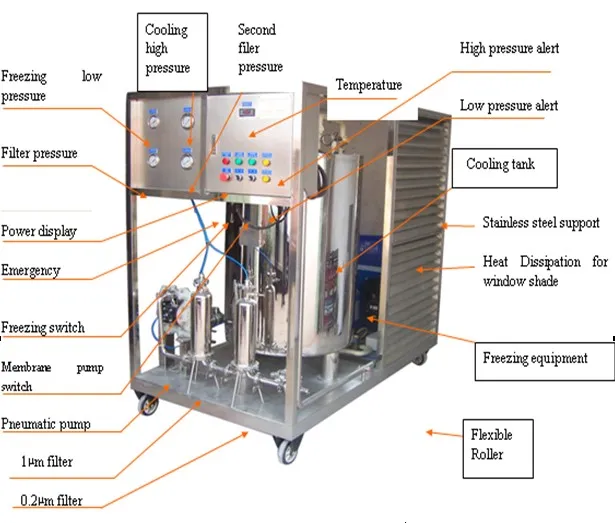

Performance and characteristic:

This product material adopts the high quality of 316L stainless steel, imports the pneumatic membrane pump with the US, takes the pressure source and carries on the pressure filtration.

The pipeline uses the hygienic grade polishing tube, facilitates the disassemblage and the clean.

The equipment adopts the filter membrane, which widely uses in the cosmetics industry, the scientific research department, the hospital, laboratory and degerm a few liquid, facilitates reliably.

Equipment Quotation

Basic configuration and technical parameter

◆ One set of Wind Cooled type 5P refrigeration unit

Including Condenser、Bottom、JV fan、French air-cooled head、Electromagnetic valve、ALCO filter、High and low pressure repression、High and low pressure Instrumentation、Danfoss Expansion Valve、Liquid storage bottle、Hand Valve、Electronic temperature control with defrosting、Thread Box、A set of custom-made evaporator、A set ofφ25 stainless steel coil

◆ one set of 500LStainless steel cooling tank with insulation

Frame: open the top cover，discharge on the ramp  bottom，outer is with insulation; The pot cover adopts 2mm-304 stainless steel;

Material: Inner is USU 304，thickness is 3mm，insulating layer is （the half open cover is without instrumentation）USU 304，thickness is 3mm;

Others: in-tank is with one set of Stainless steel cooling coil

◆ One set of Stainless steel moveable bracket    （Adopting Stainless steel method Welding）

◆ One set of Health pipeline system  （Adopting sanitary grade quick connect fittings installed）

◆ One set of Electric control system       （is integrated with moveable bracket）

◆ 2sets of 10inch 1core filter     （prepare one piece of 1µm and one piece of 0.2µmfilter element）

◆ One set of imported pneumatic diaphragm feeding pump （place of origin: America SANDPIPER;Caliber:1/2”;material :PP）

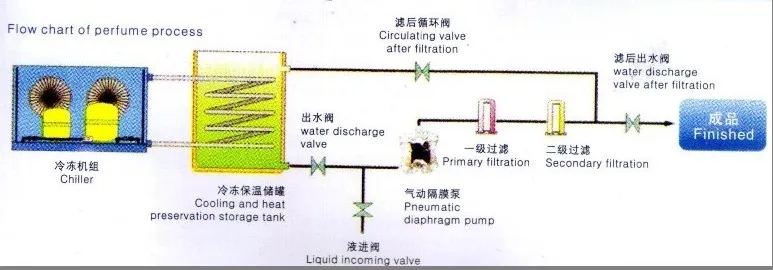

Flow chart of perfume process

Main technical parameters
