Automatic filling capping machine for perfume
Perfume freezing purifier
This product is our most newly opened machine which specialize in cosmetic liquid ,perfume, it freeze to the liquid of filtration;
Perfume freezing purifier
This product is our most newly opened machine which specialize in cosmetic liquid ,perfume, it freeze to the liquid of filtration;
Product Introduction
Main technical parameters
|
Filling Capacity |
10-100ml (adjustable) |
|
Filling Heads |
2 magnetic drive pumps, 1 vacuum pump |
|
Filling Accuracy |
≤±1% |
|
Production Capacity (Units/Min) |
25-30 |
|
Operating Air Pressure |
0.55-0.65MPa |
|
Motor Power |
2kW (380V/220V 50Hz) |
|
Filling Mode |
Vacuum negative pressure filling |
|
Material Contact Parts |
304 stainless steel |
|
Conveyor Chain Plate Material |
Plastic POM |
|
Capping Diameter |
20-80mm (adjustable) |
|
Bottle Height |
50-300mm (adjustable) |
|
Cap Height |
25-55mm (adjustable) |
|
Production Capacity (Units/Min) |
20-25 (adjustable) |
|
Operating Air Pressure |
0.55-0.70MPa |
|
Motor Power |
0.75kW (380V/220V 50Hz) |
|
Capping Mode |
Pneumatic capping |
Working Principle: Manual bottle placement → Dual-head magnetic pump filling → Single-head vacuum pump filling →
|
Configuration table |
|||
|
|
Voltage |
220V 50HZ |
|
|
|
Total Power |
2Kw |
|
|
|
Turntable Power |
400W |
|
|
|
Solenoid Valve |
AIRTAC |
|
|
|
Relay |
Delixi |
|
|
|
PLC |
Huichuan |
|
|
|

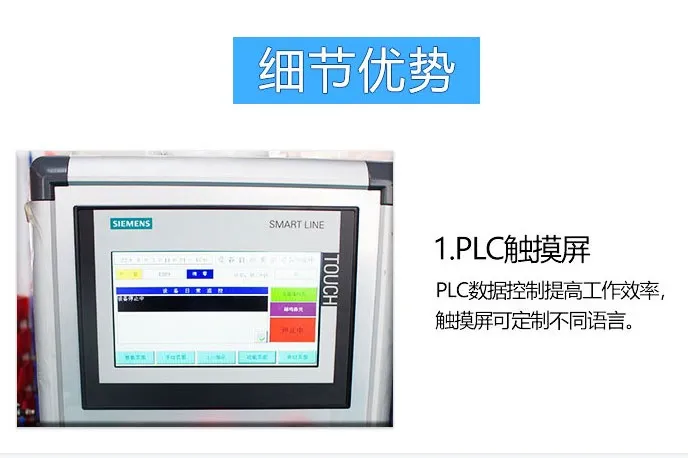

Touch Screen |
Huichuan |
|
|
|
Photoelectric Sensor |
Heyi |
|
|
|
Power Supply |
Mingwei |
|
|
|
Circuit Breaker |
Delixi |
|
Main technical parameters
|
Filling Capacity |
10-100ml (adjustable) |
|
Filling Heads |
2 magnetic drive pumps, 1 vacuum pump |
|
Filling Accuracy |
≤±1% |
|
Production Capacity (Units/Min) |
25-30 |
|
Operating Air Pressure |
0.55-0.65MPa |
|
Motor Power |
2kW (380V/220V 50Hz) |
|
Filling Mode |
Vacuum negative pressure filling |
|
Material Contact Parts |
304 stainless steel |
|
Conveyor Chain Plate Material |
Plastic POM |
|
Capping Diameter |
20-80mm (adjustable) |
|
Bottle Height |
50-300mm (adjustable) |
|
Cap Height |
25-55mm (adjustable) |
|
Production Capacity (Units/Min) |
20-25 (adjustable) |
|
Operating Air Pressure |
0.55-0.70MPa |
|
Motor Power |
0.75kW (380V/220V 50Hz) |
|
Capping Mode |
Pneumatic capping |
Working Principle: Manual bottle placement → Dual-head magnetic pump filling → Single-head vacuum pump filling →
|
Configuration table |
|||
|
|
Voltage |
220V 50HZ |
|
|
|
Total Power |
2Kw |
|
|
|
Turntable Power |
400W |
|
|
|
Solenoid Valve |
AIRTAC |
|
|
|
Relay |
Delixi |
|
|
|
PLC |
Huichuan |
|
|
|
Touch Screen |
Huichuan |
|
|
|
Photoelectric Sensor |
Heyi |
|
|
|
Power Supply |
Mingwei |
|
|
|
Circuit Breaker |
Delixi |
|
Automatic single-head capping
Automatic single-head capping
