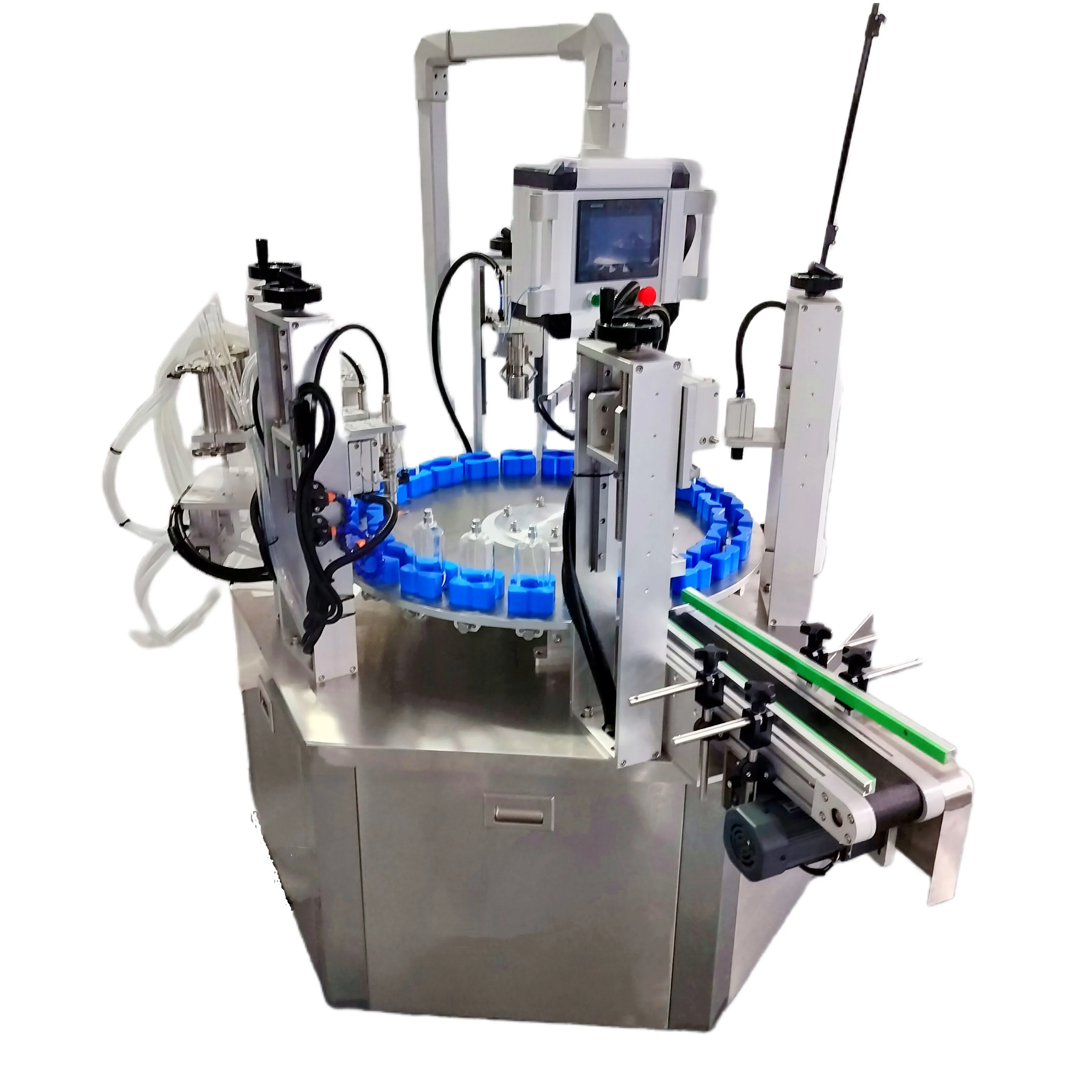

Semi-automatic filling capping machine for perfume（single capping head）
Process: Manual bottle placement onto molds ----- 1-head air washing --- 3-head automatic filling --- Manual nozzle attachment ----- Single-head alignment ----- Single-head automatic capping --- Manual put mid-range --- Single-head automatic mid-range pressing --- Automatic finished product transfer to conveyor belt
Perfume filling employs vacuum filling principles. Since actual glass bottle capacities vary slightly, uniform filling volumes would result in inconsistent liquid levels. Our production line utilizes vacuum level-equalizing filling to ensure identical liquid positions in every bottle. Mold adjustments suffice for bottle changes. Filling nozzles feature anti-drip mechanisms.
Process: Manual bottle placement onto molds ----- 1-head air washing --- 3-head automatic filling --- Manual nozzle attachment ----- Single-head alignment ----- Single-head automatic capping --- Manual put mid-range --- Single-head automatic mid-range pressing --- Automatic finished product transfer to conveyor belt
Perfume filling employs vacuum filling principles. Since actual glass bottle capacities vary slightly, uniform filling volumes would result in inconsistent liquid levels. Our production line utilizes vacuum level-equalizing filling to ensure identical liquid positions in every bottle. Mold adjustments suffice for bottle changes. Filling nozzles feature anti-drip mechanisms.
Product Introduction
Equipment Parameters:
1. Bottle Specifications (Diameter/Height): 20-120
2. Cap Specifications: Single type
3. Capping Diameter: Actual cap size, customizable
4. Capacity Range: 3-120mL, customizable
5. Production Capacity: Single-head capping 20-30/min, Dual-head capping 30-50/min
6. Filling Tolerance: ≤±1%
7. Automatic Cap Placement Rate: ≥99%
8. Power Supply: 220V 50Hz
9. Power Consumption: 1.5kW
10. Noise Level: ≤70dB
11. Weight: Approx. 400kg
12. Dimensions: 2130*1220*1370mm
Machine Configuration
|
Name |
Brand |
Place of Origin |
|
1. PLC Controller |
Huichuan |
Domestic |
|
2. Variable Frequency Drive |
Huichuan |
Domestic |
|
3. Touchscreen |
Huichuan |
Domestic |
|
4. Conveyor Belt Motor |
Zhongda |
Taiwan |
|
5. Circuit Breaker |
Schneider |
France |
|
6. Relay |
Schneider |
France |
|
7. Switching Power Supply |
Schneider |
France |
|
8. Pneumatic Components |
Yadek |
Taiwan |
|
9. Photoelectric Sensor |
Mote |
China |
|
10. Frame |
304 Stainless Steel |
Domestic |
Product details：
|

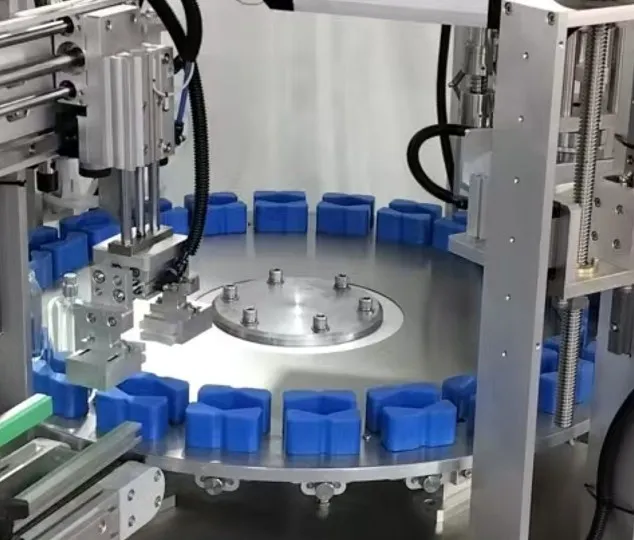

1. Bottle mold Manual placement of lids onto molds accommodates multiple products. Product changeovers are convenient, requiring only mold size adjustment. |

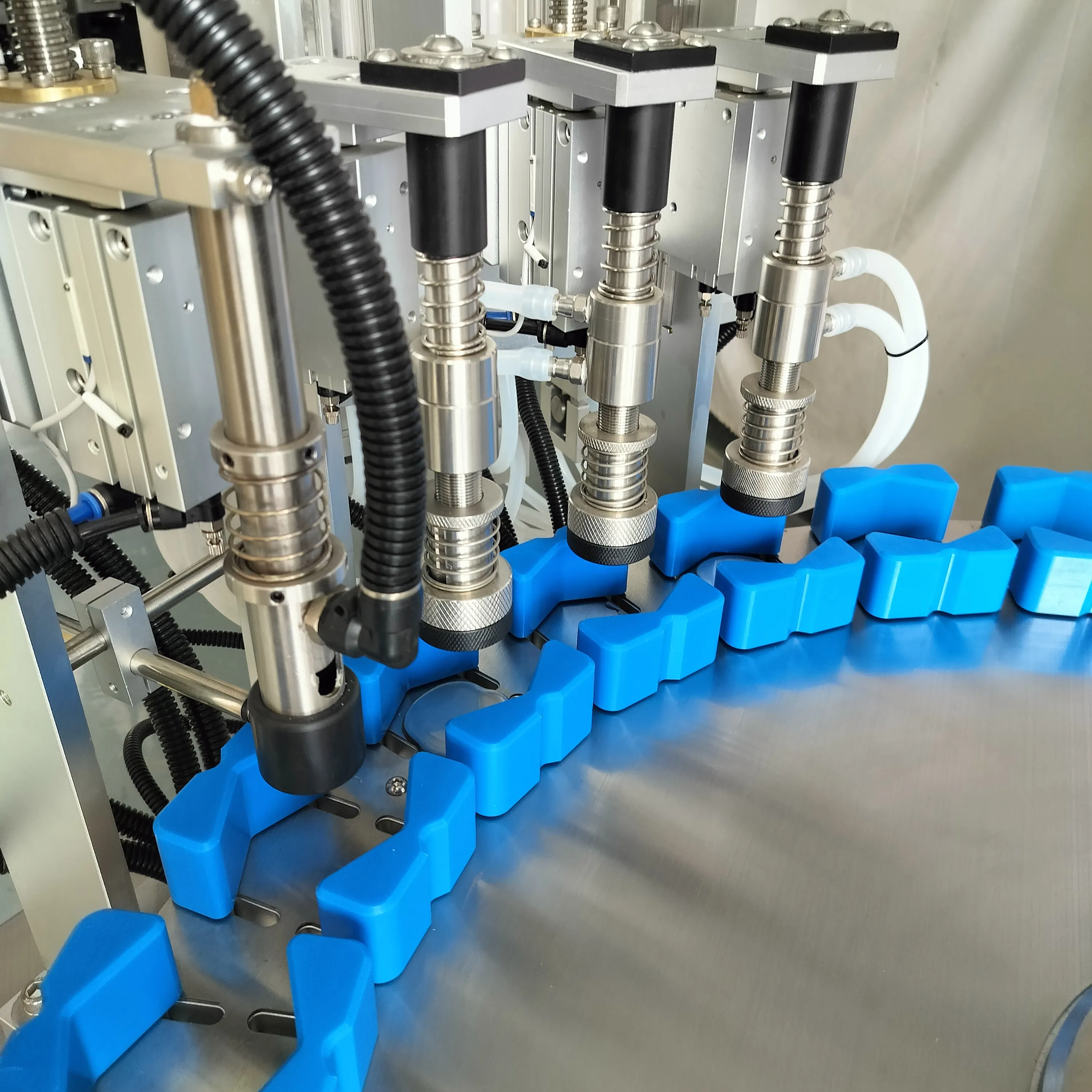

2.Filling Station 3 HeadS vacuum liquid level filling, capable of filling 3-100ML Does not affect the liquid level in glass bottles. |
|

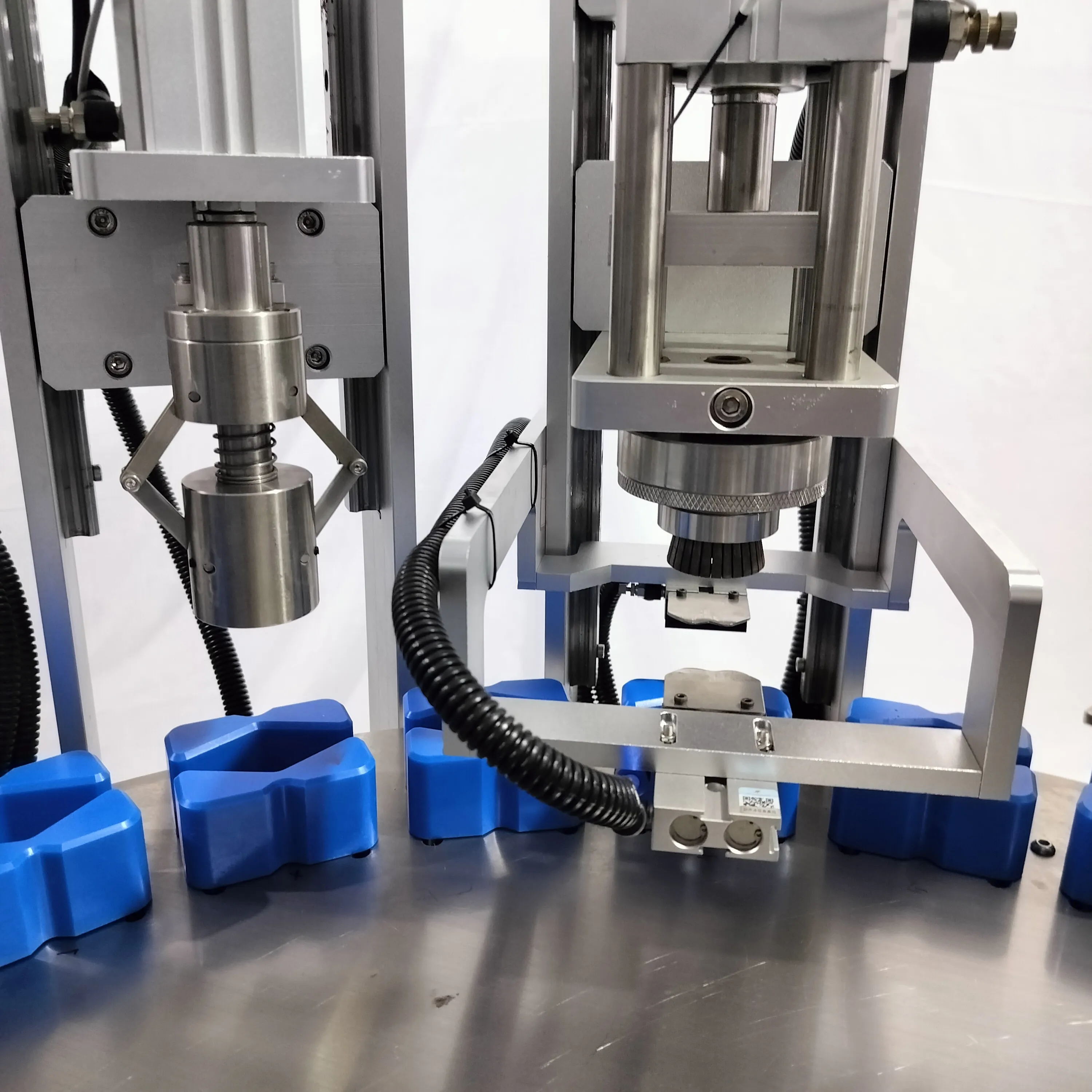

3. Pre-crimped and capping head
The left side features a pre-crimped opening. Since perfume nozzles are typically longer than the bottle body, the nozzle is first guided through the pre-tapered opening to align it before final sealing. This ensures a more stable and aesthetically pleasing seal. |
Press Mid-range
Manually position the mid-range, then automatically press it into place. |
|

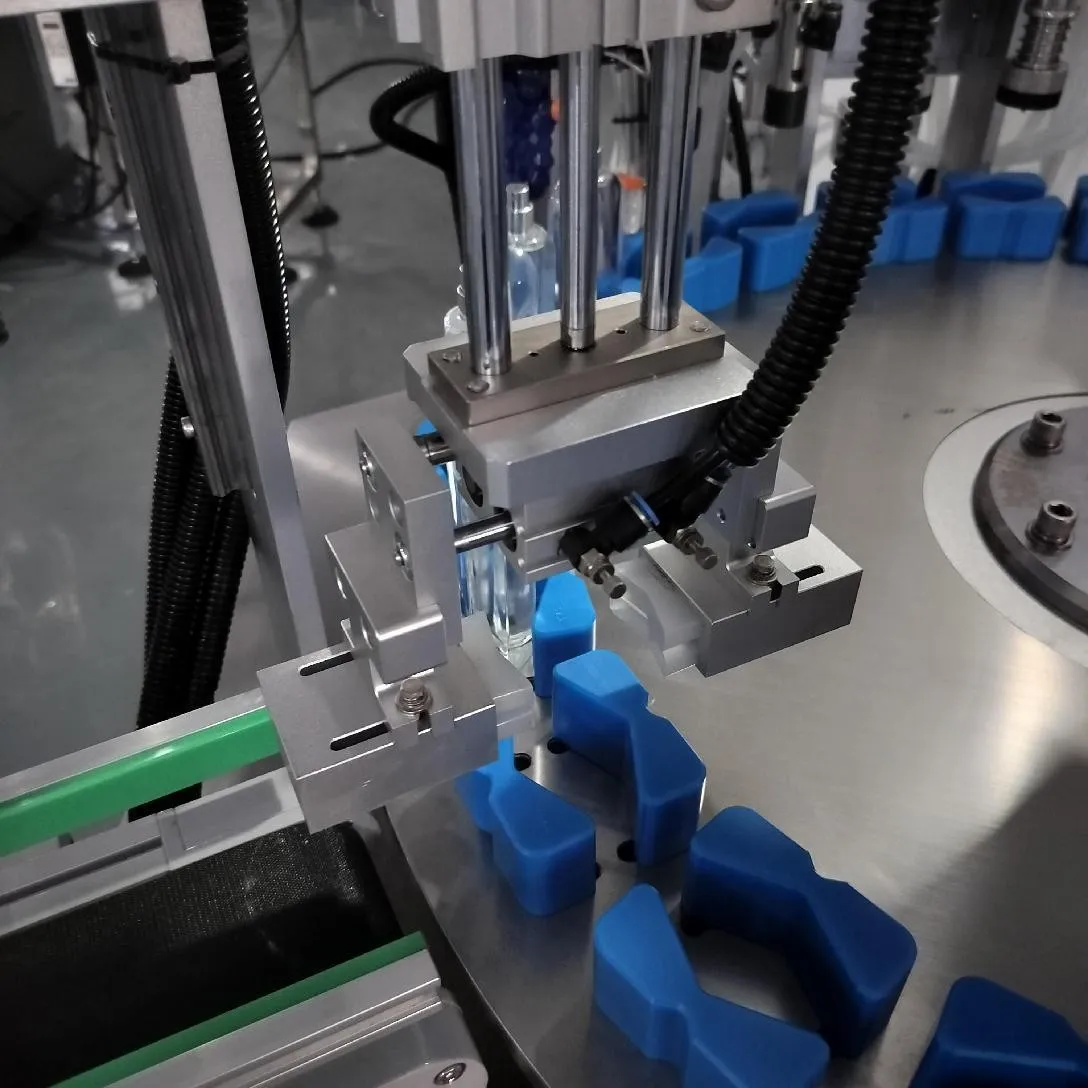

Bottle Retrieval Device
Finished products are automatically retrieved onto the conveyor belt, which can be connected to other equipment downstream. |

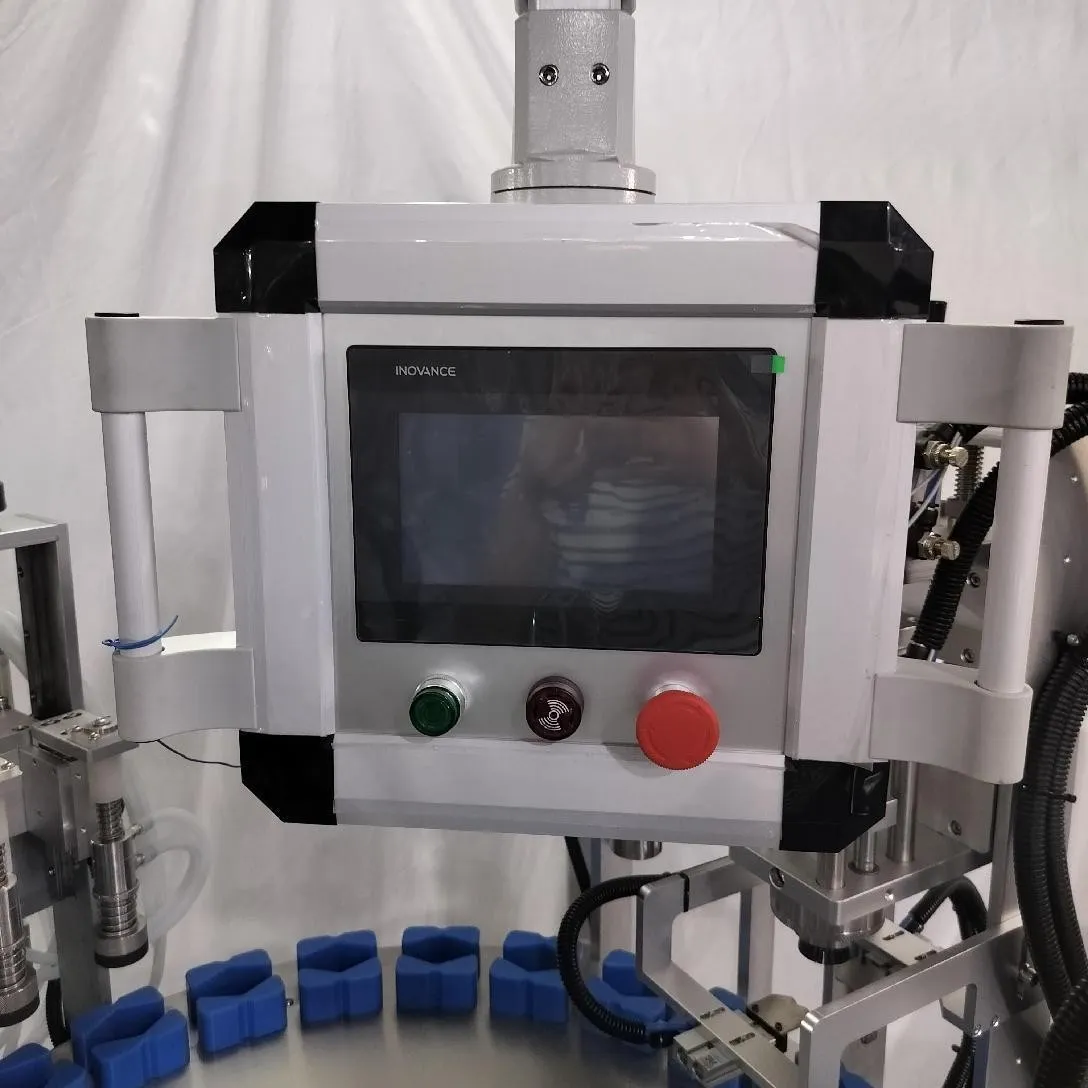

Extra-large operating interface
Touchscreen operation, movable in all directions for convenient operation from different positions.
|
|

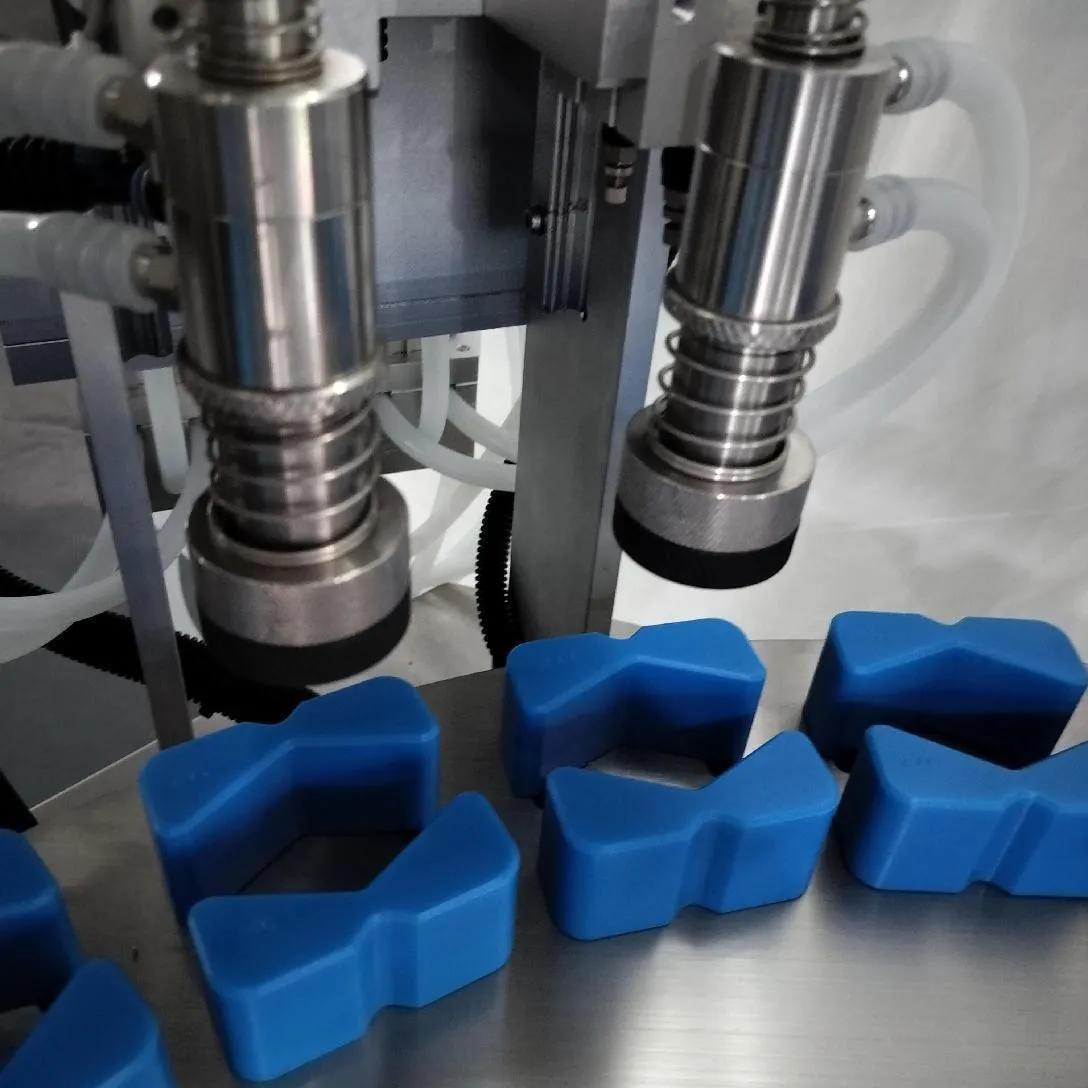

Air Washing Station Air Washing Station
Use blowing/sucking to clean the mouthpiece, removing dust and static electricity from the bottle. |
Premium Materials Entire unit constructed from 304 stainless steel, facilitating easy disassembly, installation and easily for cleaning |
Equipment Parameters:
1. Bottle Specifications (Diameter/Height): 20-120
2. Cap Specifications: Single type
3. Capping Diameter: Actual cap size, customizable
4. Capacity Range: 3-120mL, customizable
5. Production Capacity: Single-head capping 20-30/min, Dual-head capping 30-50/min
6. Filling Tolerance: ≤±1%
7. Automatic Cap Placement Rate: ≥99%
8. Power Supply: 220V 50Hz
9. Power Consumption: 1.5kW
10. Noise Level: ≤70dB
11. Weight: Approx. 400kg
12. Dimensions: 2130*1220*1370mm
Machine Configuration
|
Name |
Brand |
Place of Origin |
|
1. PLC Controller |
Huichuan |
Domestic |
|
2. Variable Frequency Drive |
Huichuan |
Domestic |
|
3. Touchscreen |
Huichuan |
Domestic |
|
4. Conveyor Belt Motor |
Zhongda |
Taiwan |
|
5. Circuit Breaker |
Schneider |
France |
|
6. Relay |
Schneider |
France |
|
7. Switching Power Supply |
Schneider |
France |
|
8. Pneumatic Components |
Yadek |
Taiwan |
|
9. Photoelectric Sensor |
Mote |
China |
|
10. Frame |
304 Stainless Steel |
Domestic |
Product details：
|
1. Bottle mold Manual placement of lids onto molds accommodates multiple products. Product changeovers are convenient, requiring only mold size adjustment. |
2.Filling Station 3 HeadS vacuum liquid level filling, capable of filling 3-100ML Does not affect the liquid level in glass bottles. |
|
3. Pre-crimped and capping head
The left side features a pre-crimped opening. Since perfume nozzles are typically longer than the bottle body, the nozzle is first guided through the pre-tapered opening to align it before final sealing. This ensures a more stable and aesthetically pleasing seal. |

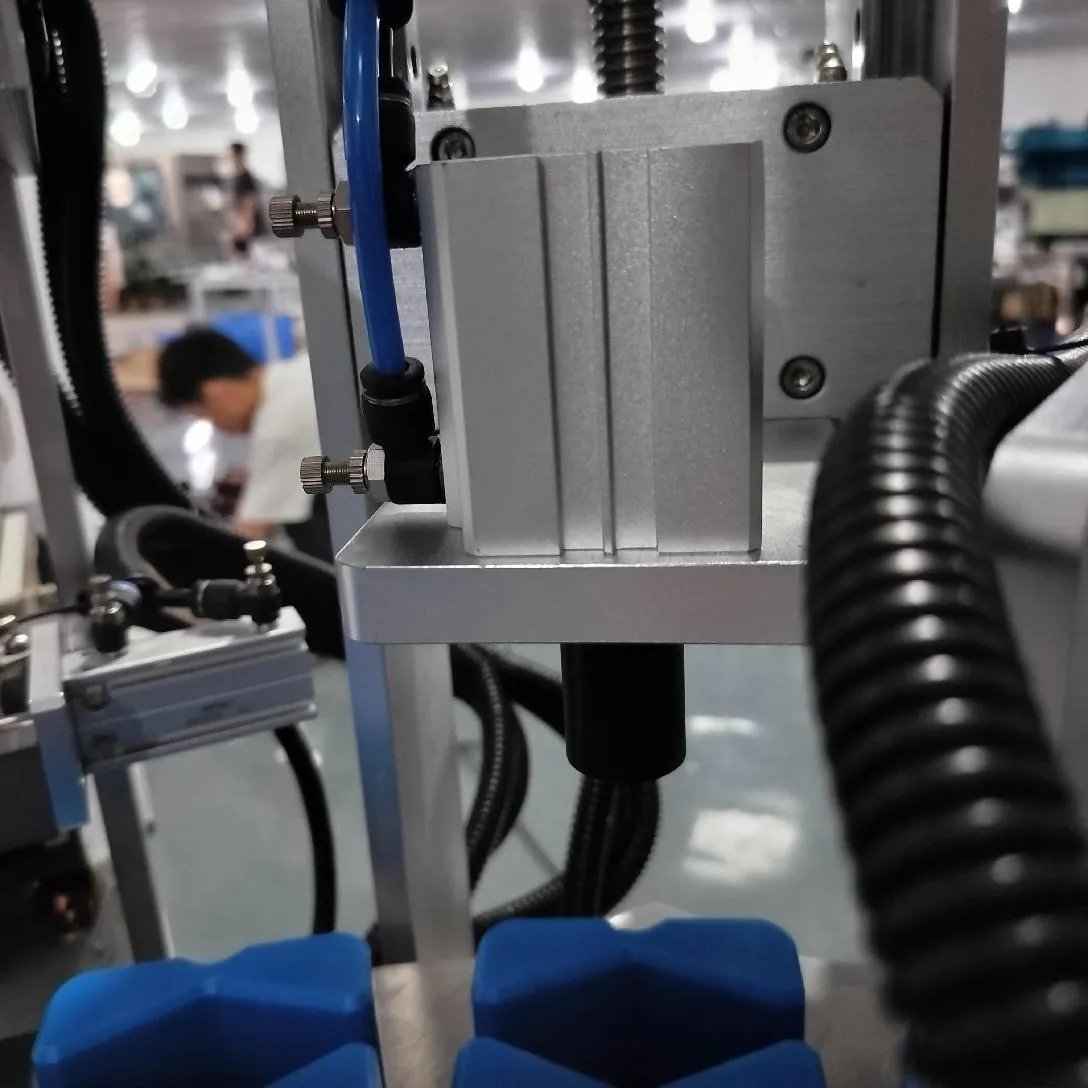

Press Mid-range
Manually position the mid-range, then automatically press it into place. |
|
Bottle Retrieval Device
Finished products are automatically retrieved onto the conveyor belt, which can be connected to other equipment downstream. |
Extra-large operating interface
Touchscreen operation, movable in all directions for convenient operation from different positions.
|
|
Air Washing Station Air Washing Station
Use blowing/sucking to clean the mouthpiece, removing dust and static electricity from the bottle. |
Premium Materials Entire unit constructed from 304 stainless steel, facilitating easy disassembly, installation and easily for cleaning |
